Application: The electronic room temperature controller INSTAT 8 can be used to control the room temperature via:

  • Electric floor heating systems
  • Room temperature control with floor temp. limitation
  • Actuators for floor and convector heating systems
  • Electric space heaters
  • Oil and gas fired hot water heating systems
  • Circulating pumps
  • Heat pumps


Supply voltage: 240V
Current: 8amp
Programming:

  • Mains on/off switch
  • Three different heating systems inside the same device (room control, floor control and room control with floor temperature limitation)
  • 2, 4, 6 selectable times for each day
  • 3 adjustable temperatures (comfort, standard, night)
  • Extra daily programme (for special cases, e.g. holidays)
  • 5 pre-set programmes
  • Manual operation that enables:
    • changing the temperature until the next programme event
    • permanently changing the temperature
  • Going out/returning home function for a quick temperature setback
  • Access protection
  • Holiday function
  • Party function
  • Runtime counter (1 through 9999 hours)
  • Pump/valve protection
  • Room or set point temperature display, selectable
  • Temperature re-calibration (to meet individual needs)
  • Change over between heating and cooling (e.g. for floor cooling systems)
  • Remote sensor optional

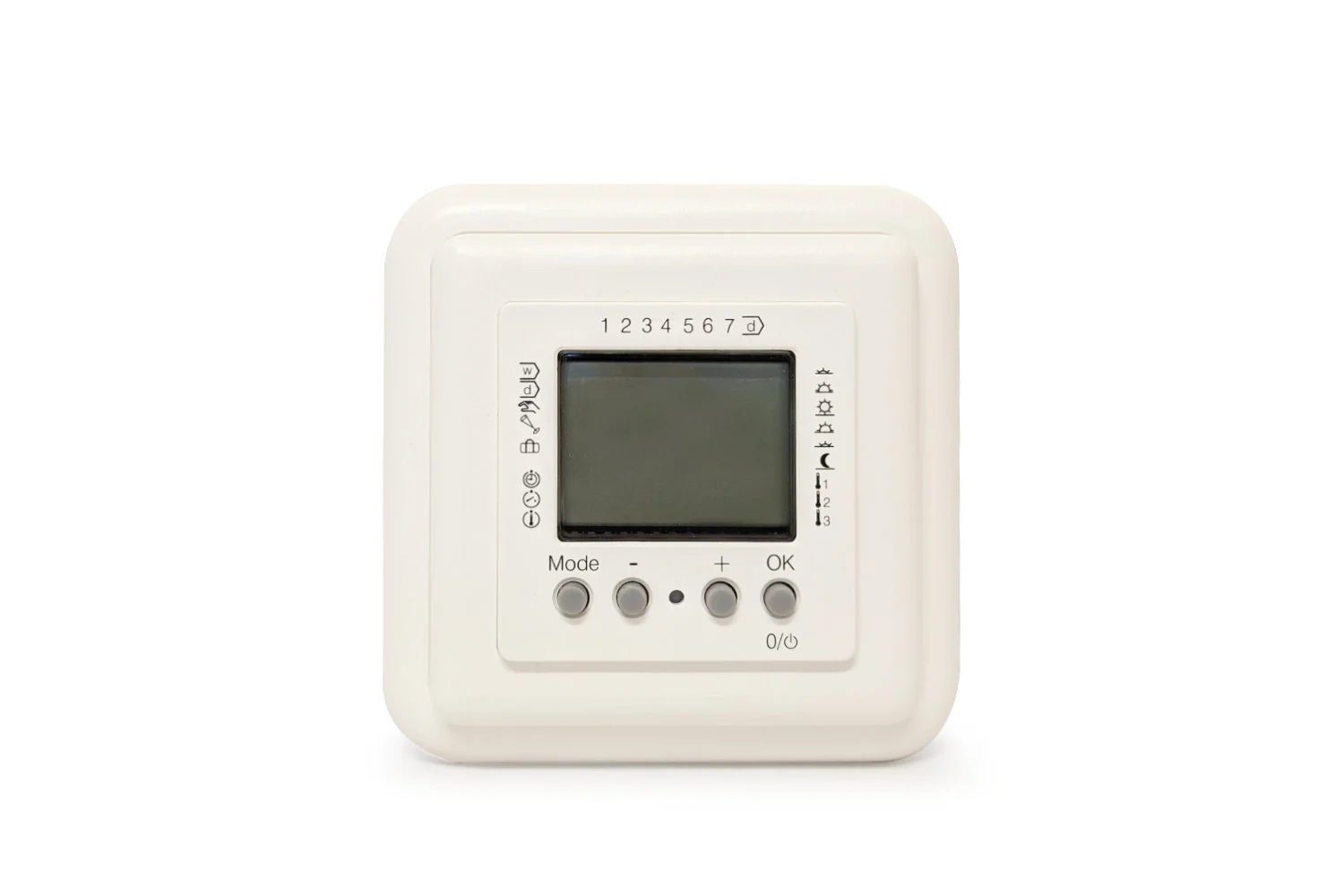

  • LCD display with clear, simultaneous indication of room temperature, time, day, operation mode, time zone, temperature zone
  • Menu driven operation through 4 buttons


Temperature range: 5 to 40°C

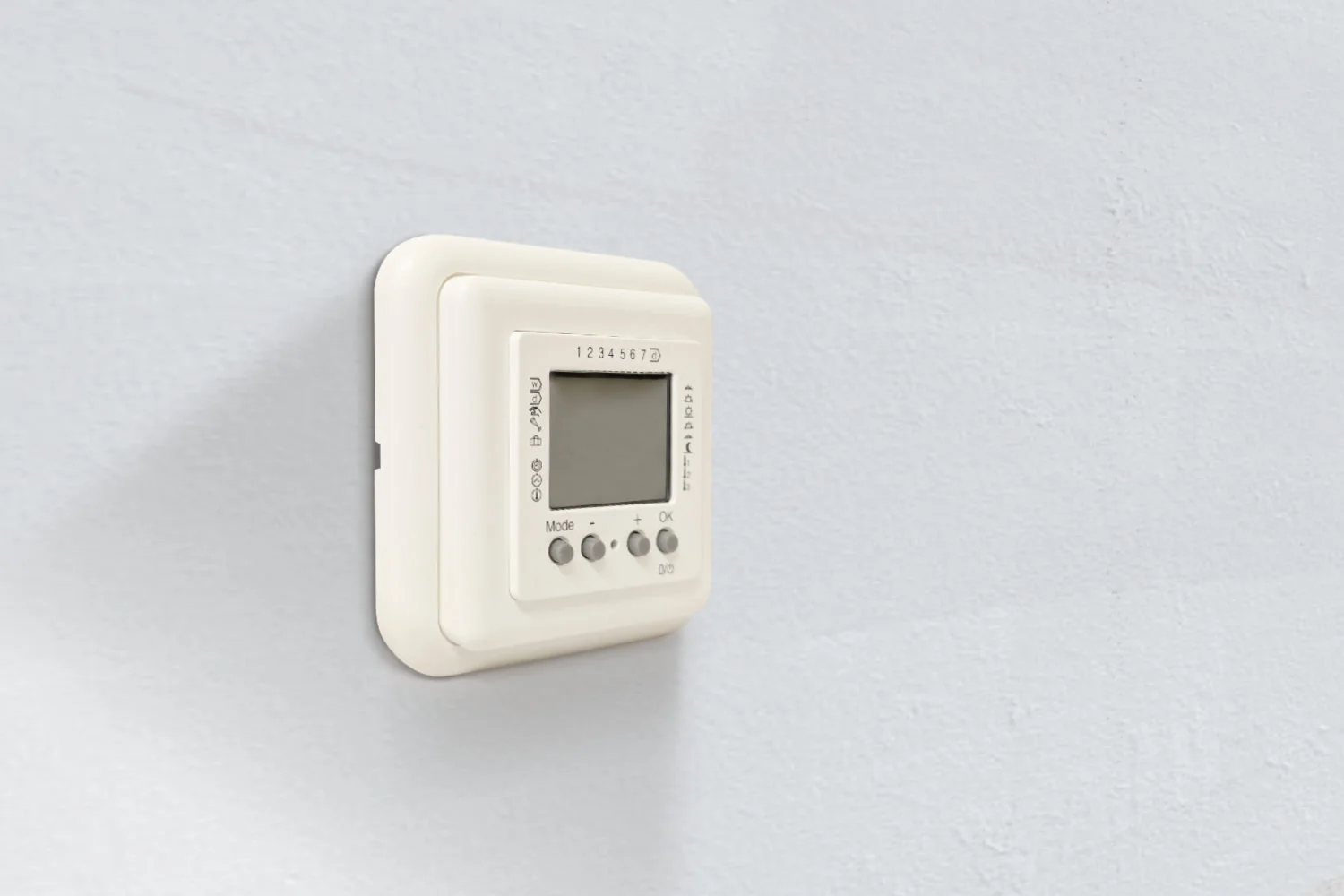

Mounting: Wall flush mount
Protection type (IP): IP 40

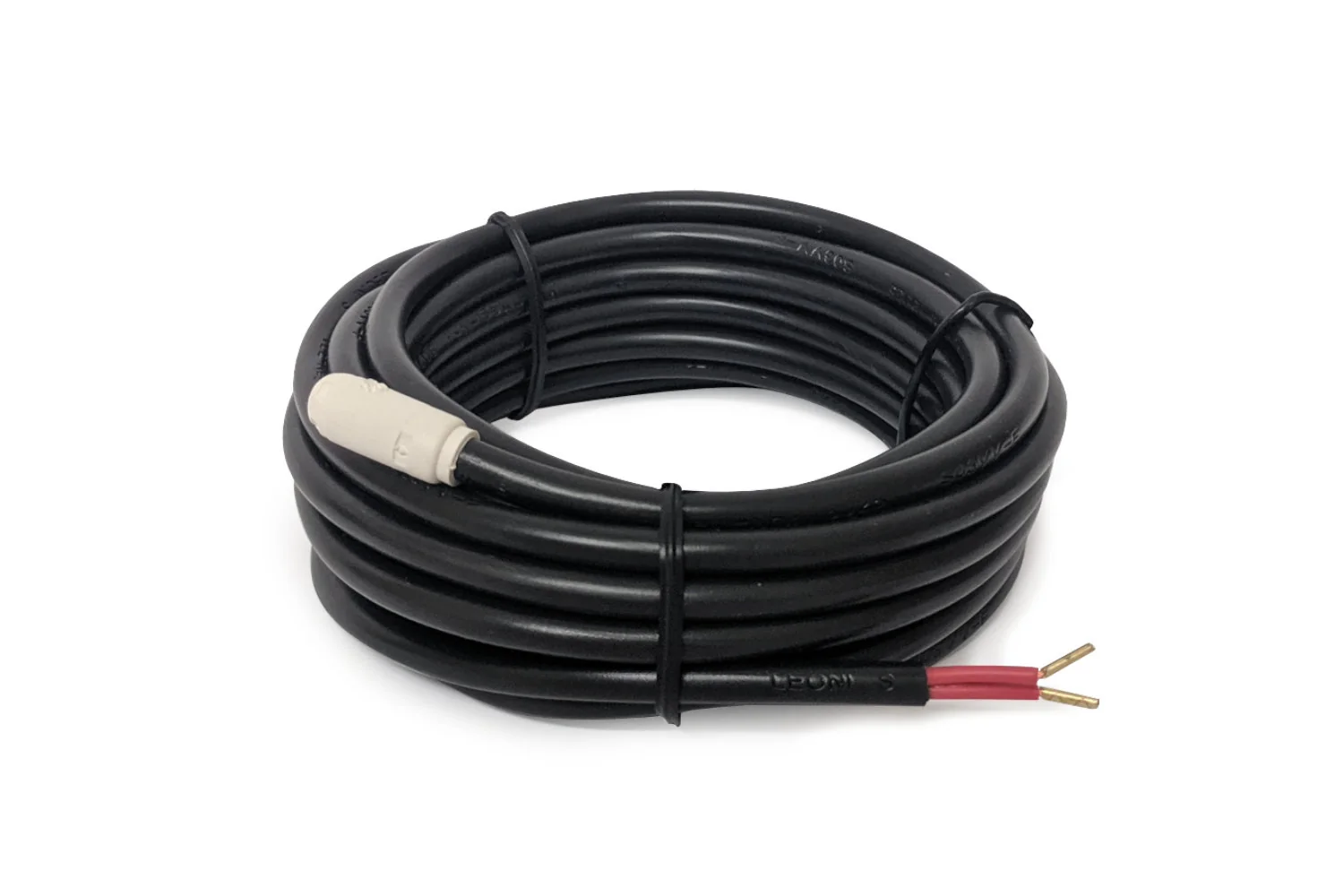

Sensor cable: 4 metre cable included
Dimensions (W x H x D) mm: 84 x 84 x 17.8/43.3



Inside the box

  • Thermostat
  • External floor sensor
  • Installation manual


Eberle model: INSTAT 8

Re-order number: INSTAT8

Eberle INSTAT 8

SKU: INSTAT8
$181.50Price
