Contactor 4 Pole - 40amp

A four pole contactor for a floor heating circuit too large for the thermostat to switch on its own. It runs silently, shows its status on an LED, and mounts on a DIN rail across three modules. This is an electrician's part, fitted at the board rather than in the room.

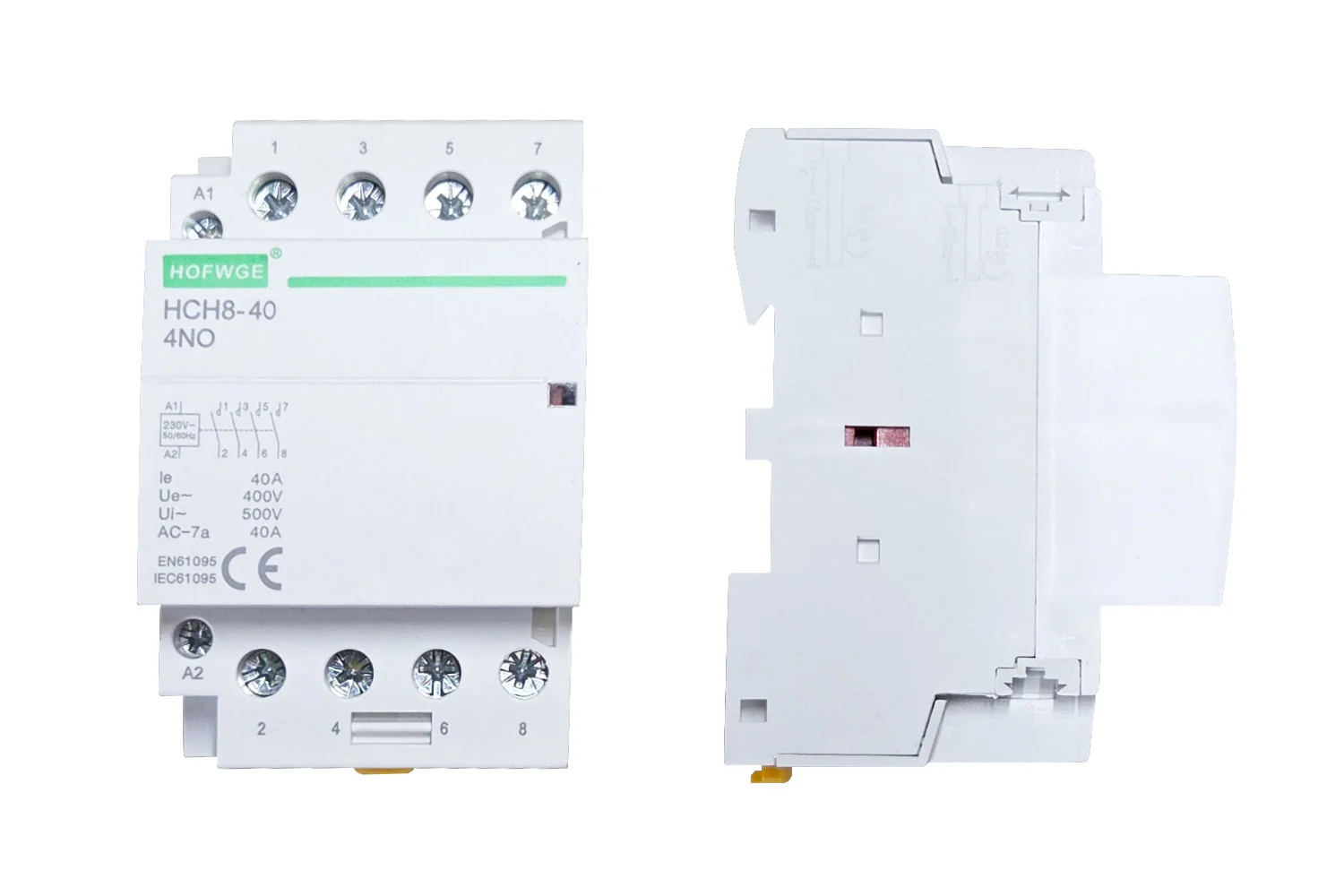

Front view of a wider four pole white unit printed "Hofwge HCH8-40 4NO" with a wiring diagram and ratings "le 40A", "Ue~ 400V", "Ui~ 500V", "AC-7a 40A", "EN61095 IEC61095" and a CE mark, terminals A1, 1, 3, 5, 7 across the top and A2, 2, 4, 6, 8 across the bottom.
$85.03 including GST

Stock code CONTACTOR4P40A

In stock

Free delivery Australia wide on orders of $100 and over, in 3 to 5 business days. $15 delivery below $100. Or pick up free from Ingleburn. Not sure it is the right part? Call 02 9829 2752.

About the Contactor 4 Pole - 40amp

Mounting: DIN rail 52.5mm - Three module wide

Specification: 4 Pole (4NO)

Current: 40amp

Features:

  • Soundless operation - bridge rectifier (hum-free)
  • Standard contacts
  • LED indicator status
  • Over voltage absorber built into the coil, to avoid damage to the control gear.
  • Terminal block contains captive screw
